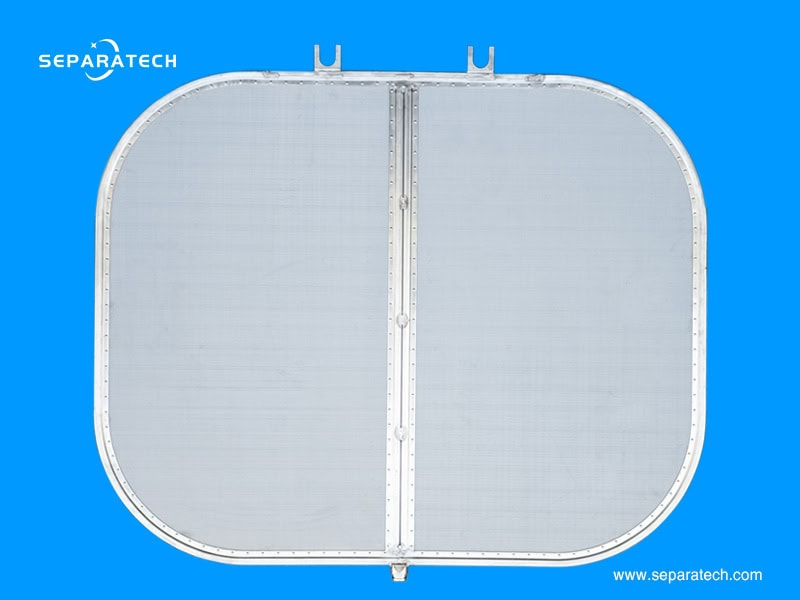

Spare Parts of Pressure Leaf Filter
SEPARATECH manufactures wide range of Spare Parts of Pressure Leaf Filter for vertical and horizontal Pressure leaf filters. The elements manufactured for wet ana dry cake discharge, 3 or 5 ply.
SEPARATECH’s high quality leaves are used in not only our own range of pressure leaf filter units but also other brands pressure leaf filters. Our rigid and heavy-duty leaf design will result in long lifetime and trouble-free filter operation. Our horizontal filter vessels go up to 200 m2 of filtration area.
DRY CAKE DISCHARGE
Filters with a dry cake discharge are equipped with a pneumatic vibrator. The filter cake can be dried by compressed air, inert gas or steam before discharge.
The cake is discharged through the conical bottom with butterfly valve.
WET CAKE DISCHARGE
Wet cake will be discharged using a built-in spray device at the top of the vessel or in the middle of the vessel. The cake will be washed down, resulting in a slurry which is discharged through the large tank bottom drain.
WIRE MESH
Our high-quality Pressure Leaf filter leaves and filter plates come highly recommended and are available in a variety of materials, with a range of structures to suit various filtration process, as well as other Spare Parts of Pressure Leaf Filter.

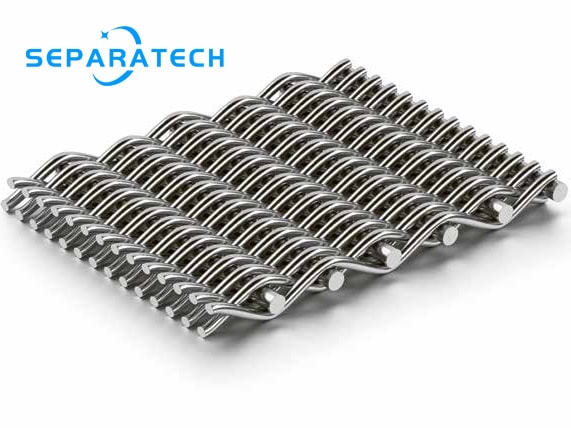

24 x 110 Dutch Weave
- Wire shute diameter warp: 0.35mm, 0.25mm, 125µm

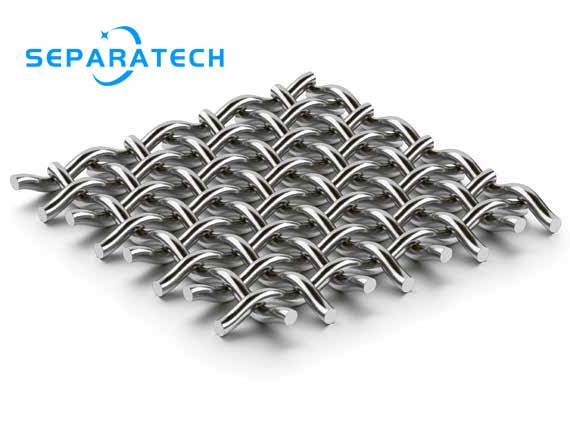

60 Mesh Plain Weave
- Wire diameter: 0.19mm, 240µm

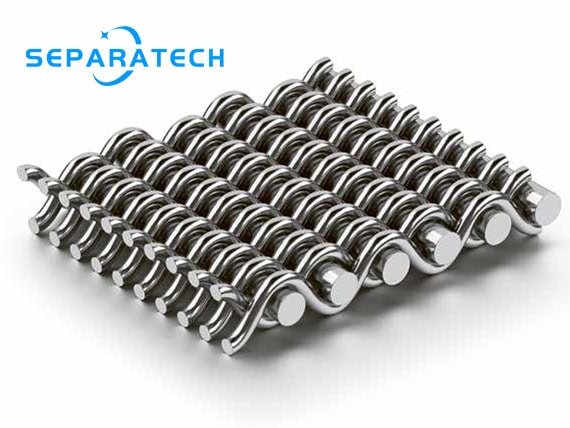

PZ80 Reversed Plain Dutch Weave
- Wire shute diameter warp: 0.35mm, 0.25mm, 90µm
MATERIALS OF CONSTRUCTION
Stainless steel 316L, 304, 904L, Polypropylene, Titanium, Hastelloy, Incoloy and Monel
APPLICATIONS
– Edible oil
– BioDiesel
– Brines
– Completion fl uids
– Molten Sulphur
– Gelatine
– Sugars and Sweeteners
– Chemicals
– Amine
SPARE PARTS
– Closure Gaskets – available in EPDM, Neoprene, Viton, Teflon, Silicone (other materials available upon request)
– Vibrator Parts – bearings, packing, seals, gaskets
– Hydraulic Parts – air and oil filters, valves, pumps, QOC hydraulic cylinders
– Leaf Nozzle O-rings – available in EPDM, Neoprene, Viton, Teflon, Silicone (other materials available upon request)
– Spray Nozzles
– Others, e.g., drainage manifold, leaf clamping bar, spacer rings,
RESCREENING
Our extensive experience in filtration and separation enables us to rebuild and rescreen old and/or damaged filter leaves for almost any make of filter and return them to their original
working order.
– Inspected prior to reassembly
– Function as new
– Filter leaves can be rescreened twice
– Extend the life span of the filter leaves by up to 40%
– Other make filter leaves can be rescreened
– Choice of designs and materials are available
Contact us for new construction or repair to existing vertical, horizontal, circular or roto-leaves for any model filter.
FAST DELIVERY OF FILTER LEAVES AND SPARE PARTS
Fast delivery of spare parts and replacements is an essential part of any manufacturing capability. With our flexible stocking programs and technical expertise and advice, SEPARATECH ensure delivery of spare parts and replacements when you need them, minimizing interruption to your production cycle. We will work with you to develop a stocking system to meet your needs. Spare parts for pressure leaf filters and filter leaves can be held on your site or we can provide immediate dispatch from our warehouses for fast delivery.
HOW TO ORDER
Contact one of our experienced spare parts coordinators or an authorized, factory-trained representative near you.
Please be prepared with the order or serial number of your filter when you place a parts order.
